MP-821W3 Radio receiver
Price: 7 410.00 RUB.
Description

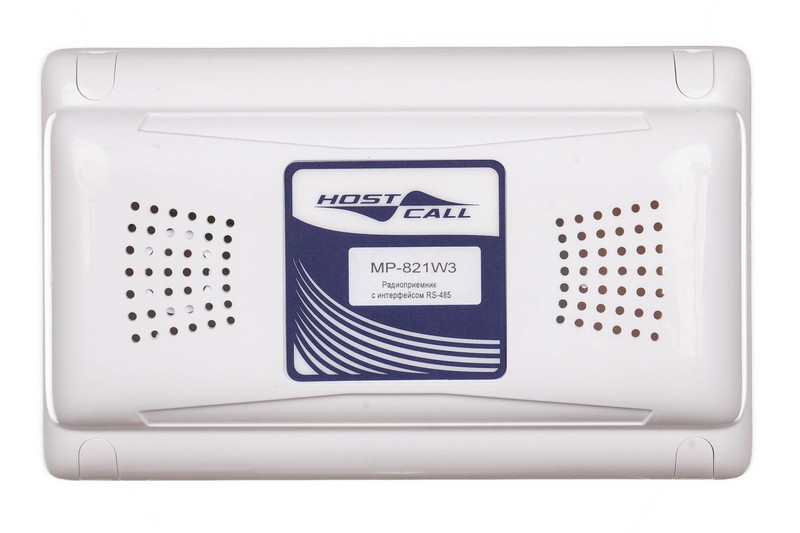

MP-821W3 radio receiver
The MP-821W3 radio receiver transmits signals from the MP-411Q3 radio button to a computer with "HostCall-Quality" SOFTWARE installed at a distance of up to 100 m. Receiving the signal from the radio button, the radio receiver transmits the received code via the RS-485 interface to a personal computer that processes the received data.
Technical specifications:
| Supply voltage, V | ±12 ±10% |
| The frequency of the receiver, MHz | 433 |
| Range, m | 30 - 100 |
| Current consumption max, mA | 0,2 |
| Number of outputs | 4 |
| Channel output type transistor OK (NPN-common collector) | |
| Maximum switching current, A | 0,5 |
| Maximum output voltage, V | 24 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Constructive | wall-mounted tilt mount |
| Dimensions, mm | 165х101х29 |
| Weight, g | 150 |
| Service life, not less than | 5 years old |
3D View
