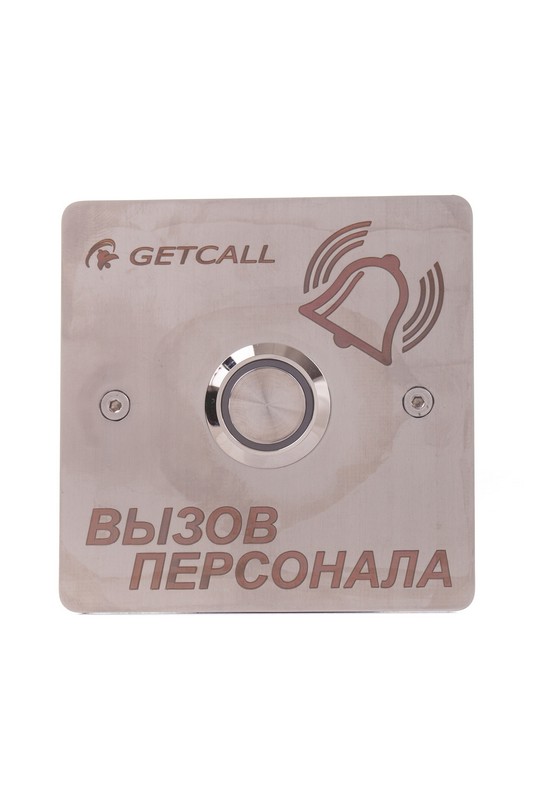

The GC-0422B1 wired call button is used in the GetCall-IS ward alarm system and is designed to send a call signal to a nurse. Mortise design. Stainless steel case. The button is installed in bathrooms, bathrooms and next to the patient's bed. The call button is connected to the signal lamp GC-0611W2 ( GC-0611W3). Up to two call buttons are connected to the lamp in parallel.

The design provides for the possibility of fixing the device in a mortise way on a vertical surface. Thanks to the use of stainless steel, the device can be treated with any disinfectants.

Technical specifications:

• Supply voltage, V, no more than 12
• Current consumption, mA, no more than 2
• Protection group IP44
• Operating temperature range, °C from -30 to + 45
• Constructive mortise fastening
• Overall dimensions, mm 82x82x45
• Weight, 150 g

Service life, at least 5 years

The equipment is certified.

Made in Russia.
