GC-0611W3 Moisture-proof warning lamp

Art.: GC-0611W3

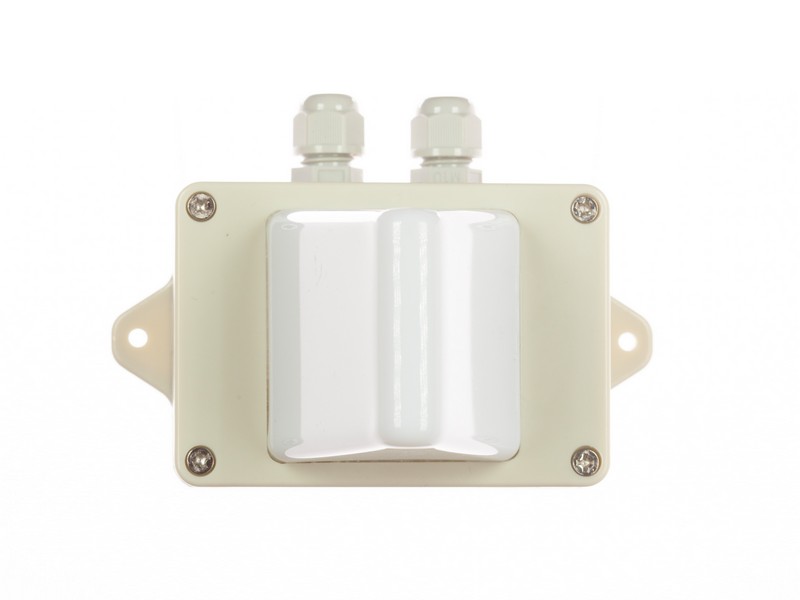

GC-0611W3 Moisture-proof warning lamp

Price: 4 990.00 RUB.
Имеется в наличии:

The GC-0611W3 two-color LED signal lamp provides an indication of a call from the GC-2001P4, GC-2001B1 intercoms and GC-0422B1 call buttons in flashing red. The light indication can be duplicated by an intermittent monotone sound signal. The use of signal lamps allows you to implement the function of duplicating a call. The warning lamp has a 2-color indication (flashing red when calling and flashing green when communication is established between the remote control and the subscriber device).

The GC-0611W3 warning lamp has an IP56 design.
The GC-0611W3 warning lamp provides:
- reception and processing of call and reset signals from buttons and intercom;
- reception and analysis of signals coming from the remote control;
- transfer of call and reset signals from subscriber devices and buttons to the remote control;
- light and sound indication of calls, turn on the conversation, reset;
- - display control on intercom devices, call buttons and reset button.


  •  Light source 4 two-color LEDs (red and green glow)
  •  Luminance (at least) 1500 µl
  •  Sound level (at least) 55 dB
  •  Power supply 12V±2 V
  •  Current consumption when switching on the same color and sound (no more than) 90mA
  •  Distance from the remote control 1200 m
  •  Constructive wall mounting
  •  Protection group IP56
  •  Overall dimensions 58x107x80 mm (without germs)
  • 80x107x80 (with germs)
  •  Weight (including packaging) 0.09 kg
  •  Operating mode - around the clock, indoors at temperatures from +5 ° C to +45 °C and humidity not more than 80% at normal atmospheric pressure
  • Service life, at least 5 years

The equipment is certified.

This equipment is guaranteed for 60 months from the date of sale

Made in Russia.
