The GC-1009D1 communication console is designed for organizing communication with 9 subscribers via two-wire lines with GC-2001B1, GC-2001P4 intercoms used as subscriber loudspeakers, as well as for receiving calls from GC-0422B1, GC-0423B1, GC-0422W1, GC-0423W1 buttons via a GC-0611W2 or GC-0611W3 signal lamp.

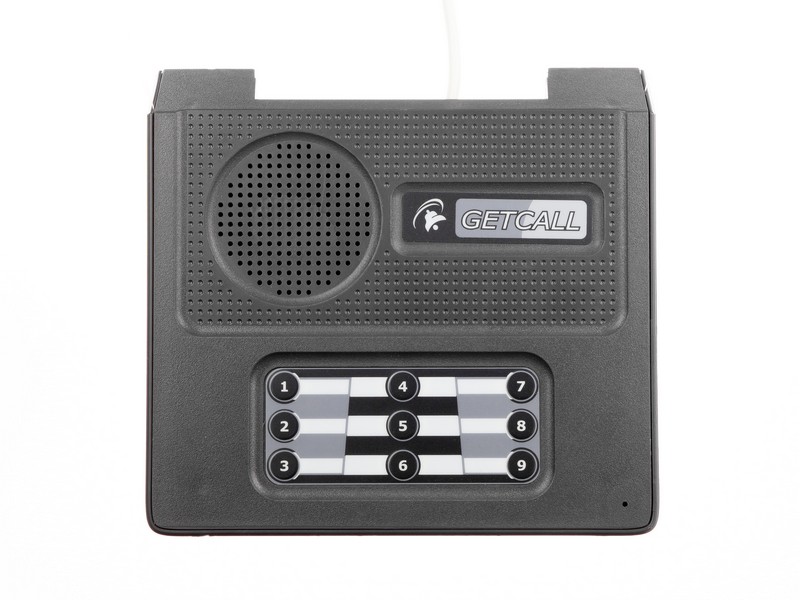

On the upper surface of the remote control there are subscriber selection buttons, a loudspeaker, a microphone, LED indicators of subscribers. There is a power connector on the back panel of the remote control. On the right side of the remote control there are call volume and speaker volume controls and a connector for connecting an external microphone. A microphone is installed in this connector on a flexible stand with a length of 17 cm.

There is a hole on the underside of the remote control through which the microphone sensitivity is adjusted.

To power the GC-1009D1 remote control, a 24V power supply is used, which is included in the remote control package.

Main features of the GC-1009D1 remote control: ZAA23850Z3

• the maximum number of connected subscriber devices is 9;
• the maximum number of subscriber devices (per line) is 1;
• hands-free half-duplex mode (automatic half-duplex);
• the connection of subscriber devices in any set (series GC-4017 and GC-2001, GC-5002T1, GC-5003T, buttons, call to GC-0422B1, GC-0423B1 and buttons reset GC-0421В1 (via signal lamp GC-0611W2 and GC-0611W3));
• check the integrity of the subscriber line;
• sending a tone call to the subscriber's device;
• receiving a call from a subscriber device;
• selective, conference call;
• the output power in the loudspeaker mode is not more than 500 MW;
• 24 V power supply (from 220V mains via adapter, included in the remote control package);
• current consumption not more than 0.24 A;
• power consumption not more than 6 VA;
• sound level not less than 85 Db;
• maximum removal subscriber speakerphones, handsets series GC and GC 5002-5003 and call buttons and reset to 1000 m (for installation of cable lines UTP2х0,5 5кат., resistance of a core of 96 Ohms/km);
• the maximum distance signal lamps GC-0611W2 and W3– up to 1200 m (at installation of cable lines UTP2х0,5 5кат., resistance of a core of 96 Ohms/km);
• table-wall mount;
• dimensions - 182x172x30/40mm;
• weight including the power supply unit - 0.7 kg;
• service life – at least 5 years.

The scope of delivery includes:

• remote control - 1 pc;
• remote microphone - 1 pc;
• switching box - 1 pc;
• adapter (DC 24V)-1 pc.;
• passport - 1 pc.

Note: All additional options and subscriber devices to the remotes are supplied on a separate order.

The equipment is certified.

This equipment is guaranteed for 60 months from the date of sale

Made in Russia.
