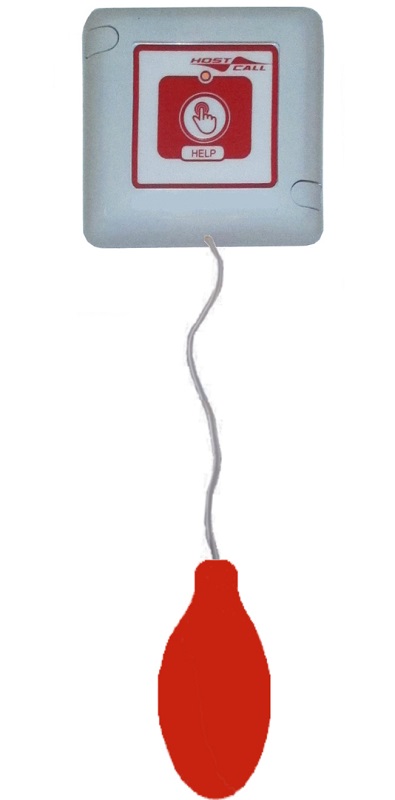

MP-435W2 Waterproof wired pneumatic button
Price: 11 170.00 RUB.
Description
Moisture-proof wired digital pneumatic call button MP-435W2 with a cord is designed for calling staff with seriously ill patients, from treatment rooms (medical baths), etc. The product is designed to work as part of the equipment of the "HostCall-CMP" personnel call systems.
The call can be made in 2 ways – either by squeezing the rubber "pear", or by pressing the membrane key on the front panel of the button. The mechanical circuit consists of sealed contacts controlled by an electromagnetic field, the position of which is changed by compressing the air. The call is duplicated by a backlight built into the button body and an audible signal. For protection from moisture, the board is covered with varnish.
Technical specifications:
| Maximum current consumption, mA | 1 |
| Supply voltage, V | no more than 12 |
| Overall dimensions, mm | 82х82х18 |
| Cord length, m | 2 |
| Protection class | IP44 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Service life, not less than | 5 years old |
