Category: Main / NURSE CALL SYSTEM / NURSE CALL SYSTEM " HostCall-CMP" / Equipment of a post of the nurse

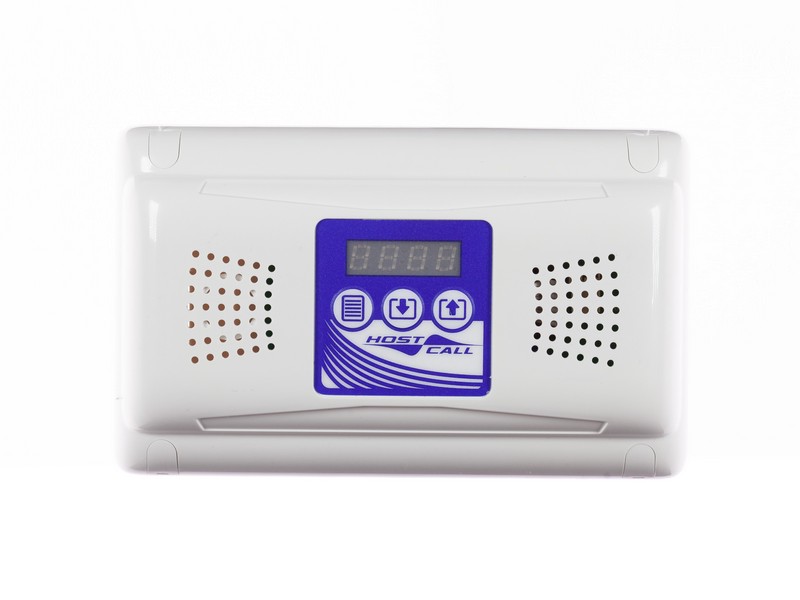

MP-231W2 System controller
Price: 7 180.00 RUB.
Description
The MP-231W2 system controller is designed to work as part of the equipment in the personnel call system «HostCall-CMP».
The MP-231W2 system controller provides:
- operation control of the MP-811S1 radio transmitter (for MP801H 2 radio pagers, nurses and doctors) based on data received over the RS-485 bus;
- possibility of offline programming of radio pagers MP-801H2.
The MP-231W2 system controller is connected to the power line and the RS-485 trunk interface.
Technical specifications
The MP-231W2 system controller has the following technical characteristics:
| Supply voltage, V | ±12 ±10% |
| Current consumption: | |
| in standby mode when exchanging via RS-485 with the remote control, mA | 60 |
| peak when the radio transmitter is turned on, mA | 120 |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Constructive | wall mounted overhead mount |
| Dimensions, mm | 165х101х29 |
| Weight, g | 150 |
| Service life | at least 5 years |
3D View
