The MP-414W1 presence/reset and doctor call radio button is designed to work as part of various personnel call systems (hospital systems, personnel call systems for the disabled, etc.) and serves to send a call via radio channel to the MP-821W1, MP-821W2 radios and the MP-211W2 radio controller (with a built-in corridor lamp).

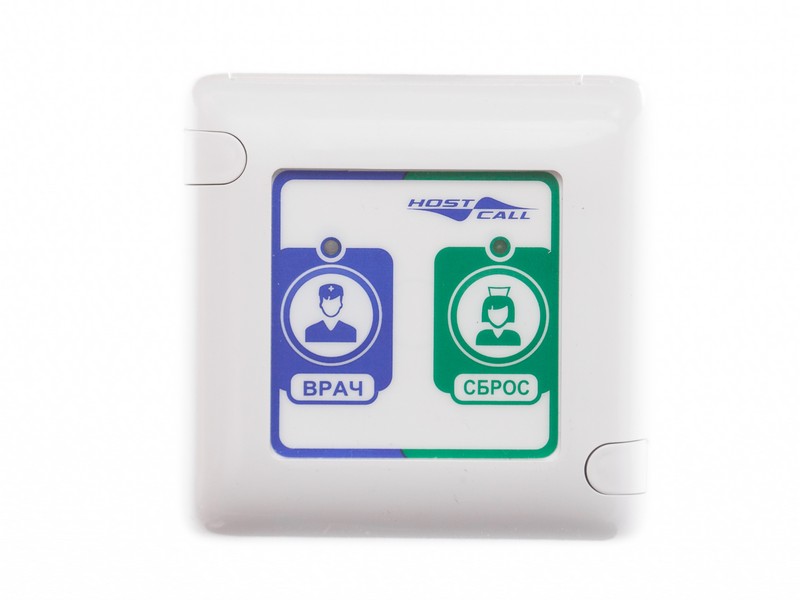

The radio button is made in a plastic case and has a wall mount. The radio buttons "RESET" and "DOCTOR" are combined in a single case of the radio button. To reset the call and call the doctor, press the corresponding membrane key on the front panel of the radio button. The green LED above the "RESET" button will briefly light up when the "RESET" button is pressed, or the blue LED above the "DOCTOR" button when the "DOCTOR" button is pressed. This means that the dropped call is implemented. Pressing any of these buttons is also accompanied by an audible signal.
Use the "DOCTOR" button to make an emergency call to the doctor's room.
The "RESET" button enables the indication of the presence of staff in the ward (single press) and resets calls (repeated press). Calls can be reset no earlier than 5 seconds after the first press of the "RESET" button.
The MP-414W1 radio button has a user-programmable code package (OOC modulation) and is designed to work with receivers and repeaters that support this type of encoding (see the receiver manual).
Technical specifications
| Number of channels | 1 |
| Radio frequency, MHz | 433 |
| Signal output power, W | 0,1 |
| The duration of the battery life, months. (average) | 4 |
| Range, m | 20 |
| Battery voltage, V | 12 (1 element 23A 12V) |
| System number range | from 1 to 32 |
| The range of rooms of the chamber (premises) | from 1 to 32 |
| Radio Adapter number range | from 1 to 32 |
| Dimensions, mm | 82х82х18 |
| Operating temperature, °C at a humidity of not more than 80% at normal atmospheric pressure | from +5 to +45 |
| Service life, not less than | 5 years old |
