Category: Main / NURSE CALL SYSTEM / NURSE CALL SYSTEM " HostCall-CMP" / System-wide equipment

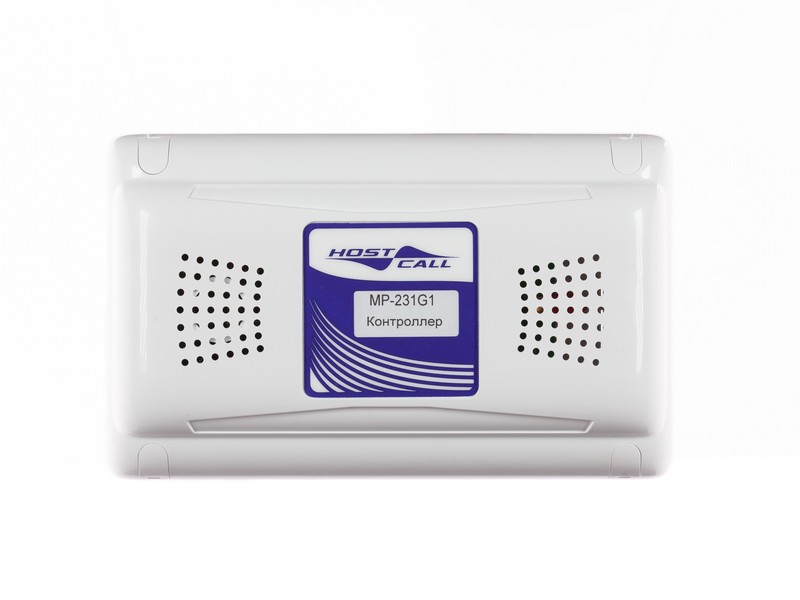

MP-231G1 SMS transmission controller
Price: 12 430.00 RUB.
Description
The MP-231G1 SMS message transmission controller is designed to work as part of the equipment in the "HostCall-CMP"personnel call system. The MP-231G1 controller provides notification of medical workers about calls from patients from wards by sending SMS messages via GSM communication channels to mobile phone numbers that have been pre-programmed in the device's memory.
The device is an additional means of notifying medical professionals about calls from patients from the wards.
The MP-231G1 controller is connected to the power line and the RS-485 trunk interface. A SIM card is required for the controller to work.
Technical specifications:
| Supply voltage, V | ±12 ±10% |
| Current consumption: | |
| in standby mode when exchanging via RS-485 with the remote control, mA | 60 |
| peak when sending SMS, mA | 120 |
| Working in 2G network | |
| Mode of operation | around the clock |
| Operating temperature range, °C | +5÷45 |
| Relative humidity, % | no more than 80 |
| Atmospheric pressure, mmHg | from 650 to 800 |
| Constructive | wall mounted overhead mount |
| Dimensions, mm | 165х101х29 |
| Weight, g | 150 |
| Service life | at least 5 years |
3D View
